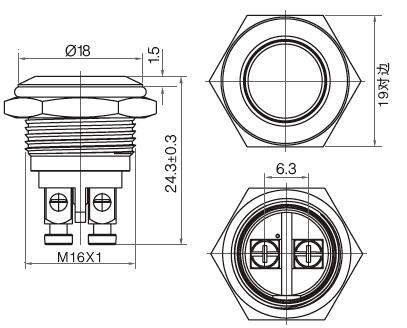

Installation hole size: Φ16mm
Switch rated value: 2A/36VDC
Switch combination: 1N0,
sign
Operation type: Nonstick type
Switch type：Slow moving double contact
Contact resistance: ≤50mΩ
Insulation resistance: ≥1000mΩ
Insulation strength: 2000VAC
Ambient temperature: -20℃ ~ +55℃
Mechanical life: ＞1 million times
Appliance life: ＞0.2 million times
Nut torque: 5~14N.m
Operation pressure: ≤4N
Operation stroke: ≤2mm
Hull/Key: Stainless Steel/Brass nickelage/Aluminum oxide
Base: Engineering Plastics
Contact: Silver alloy
